R8

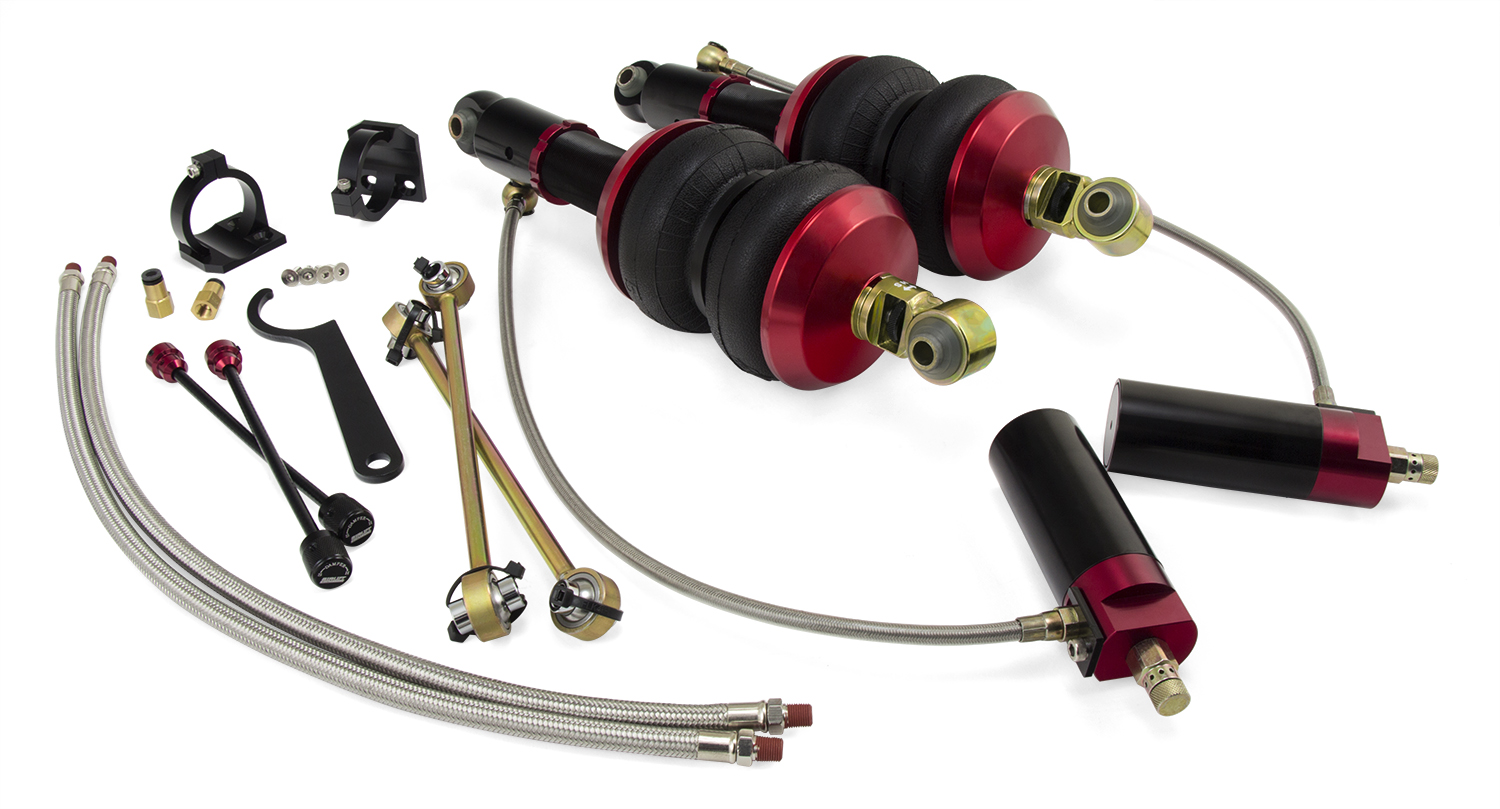

FRONT KIT


  • 78mm/3.1" Drop
  • Double Bellows Progressive Rate Springs
  • 2-way, 30-level adjustable damping with external reservoir for independent rebound/compression adjustment
  • Threaded, Adjustable Shock Mounts
  • High Performance Monotube Shock
  • Braided Stainless Steel Leader Air Hoses
  • Integrated Roll Plates
  • Remote Damping Extenders
  • Rubber Upper Mounts

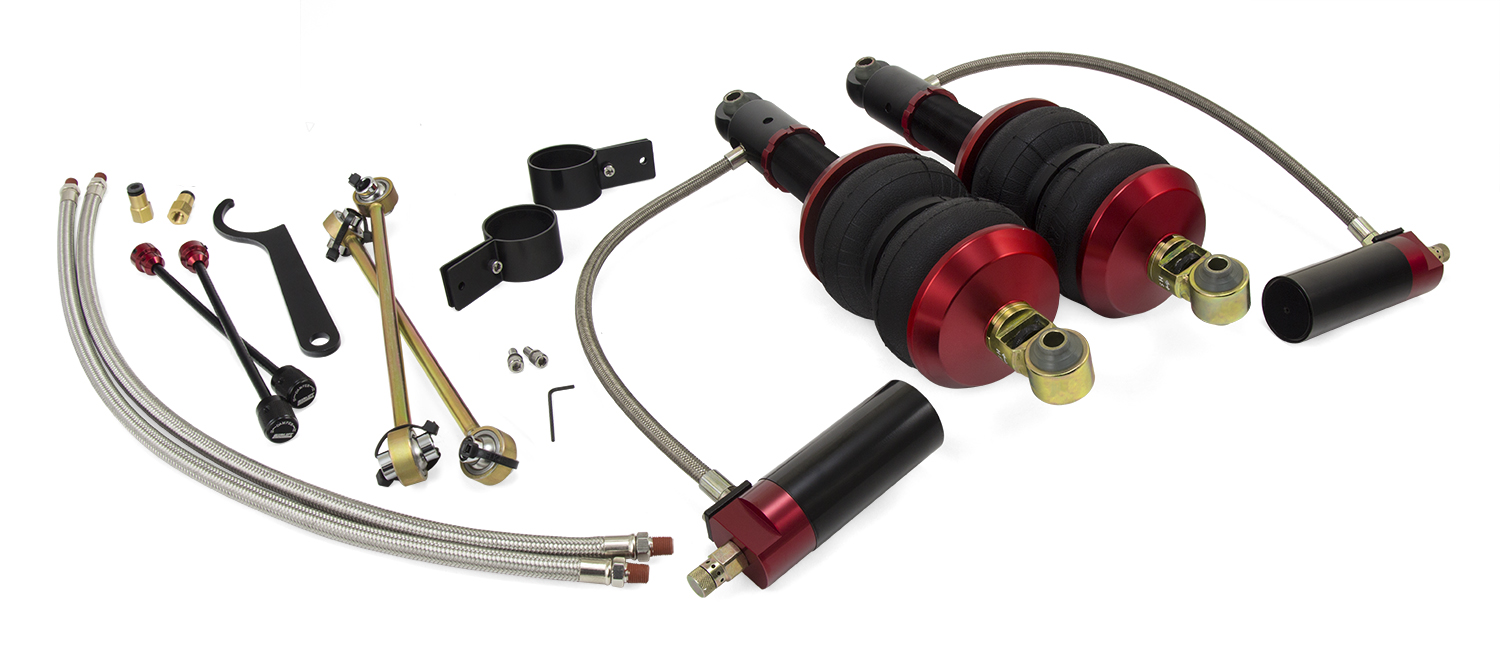

REAR KIT


  • 71mm/2.8" Drop
  • Double Bellows Progressive Rate Springs
  • 2-way, 30-level adjustable damping with piggyback style nitrogen canisters
  • Threaded, Adjustable Shock Mounts
  • High Performance Monotube Shock
  • Sway Bar Endlinks
  • Roll Plates
  • Rubber Upper Mounts

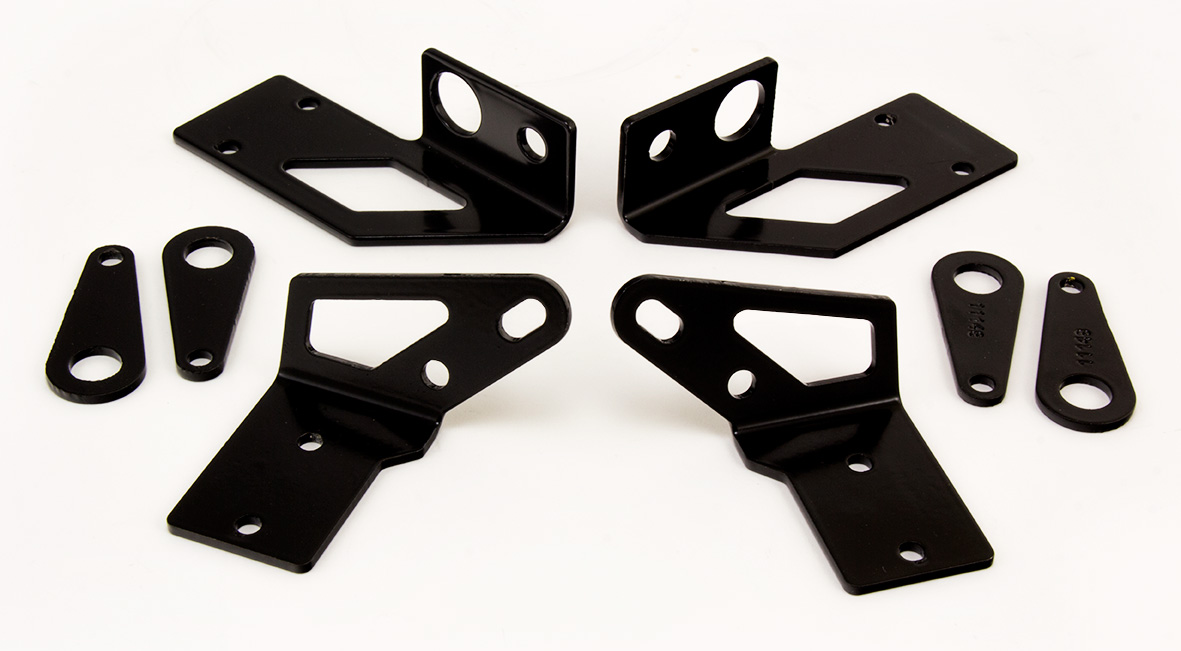

Height Sensor Bracket Kit


  • Also now available from Air Lift Performance are our vehicle-specific height sensor brackets! Designed specifically for the R8, these no-drill, bolt-on height sensor brackets easily install with our 3H height sensors, allowing you to reach precise vehicle heights, all at the touch of a button.

MODEL FITMENT

    • 2008-2015 Audi R8
    • 2011 Audi R8 Spyder
    • 2012 Audi R8 GT
    • 2015 Audi R8 Plus

*NOTE: If your vehicle has electronic damping, a delete module is required.

INSTALLATION DETAILS

  • Modifications Req. Front: Does not use electronic damping control, reroute wire harness to prevent potential damage.
  • Modifications Req. Rear: A) Stabilizer bar modification may be required for certain models. B) Does not use electronic damping control.
