AIR SPRING

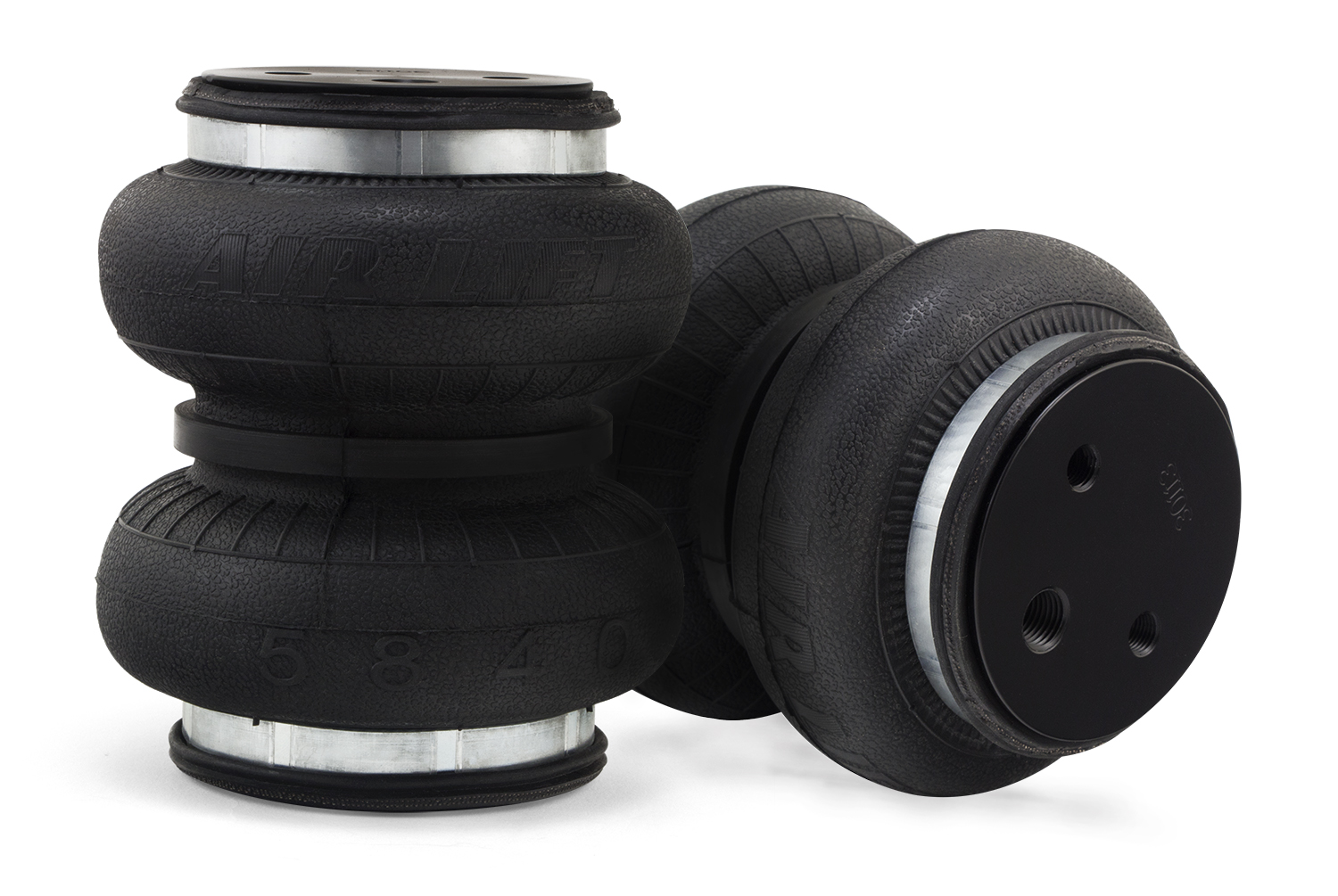

2B-5 BELLOWS (58535)


  • Maximum Extended Height: 6.5″
  • Compressed Height: 2.8″
  • Maximum Diameter: 5.12″
  • Maximum Load at 100 PSI: 1,495 lbs.
  • Design Height: 4.5″
  • Air Fitting Size: 1/4″
  • Top Fastener: 3/8″ – 24
  • Bottom Fastener: 3/8″ – 24
  • Mounting Hole Center: 1.75″

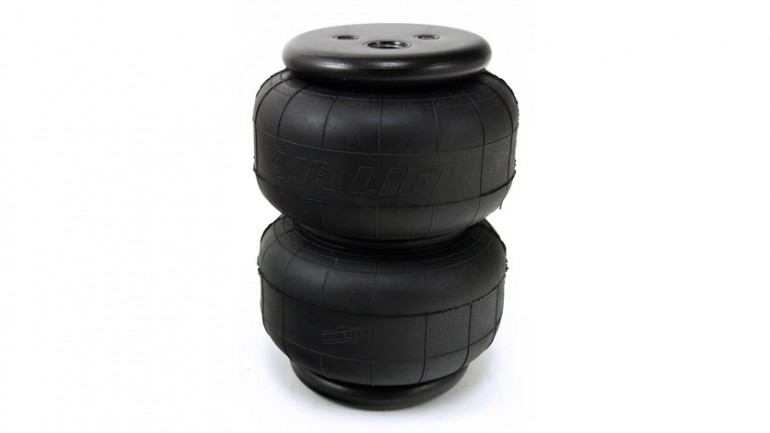

DOMINATOR D2500 SINGLE 1/2″ PORT (58343)


  • Maximum Extended Height: 10.5″
  • Compressed Height: 2.8″
  • Maximum Diameter: 7″
  • Maximum Load at 100 PSI: 2,030 lbs.
  • Design Height: 5.5-7.5″
  • Air Fitting Size: 1/2″
  • Top Fastener: 3/8″ – 16
  • Bottom Fastener: 3/8″ – 16
  • Mounting Hole Center: 1.75″ – Top/Center/Bottom

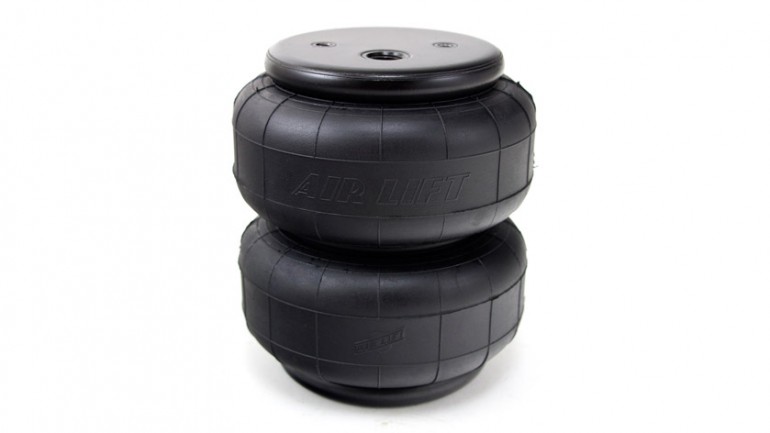

DOMINATOR D2600 SINGLE 1/2″ PORT (58616)


  • Maximum Extended Height: 12.5″
  • Compressed Height: 2.8″
  • Maximum Diameter: 8″
  • Maximum Load at 100 PSI: 3,055 lbs.
  • Design Height: 6.0-9.0″
  • Air Fitting Size: 1/2″
  • Top Fastener: 3/8″ – 16
  • Bottom Fastener: 3/8″ – 16
  • Mounting Hole Center: 2.75″

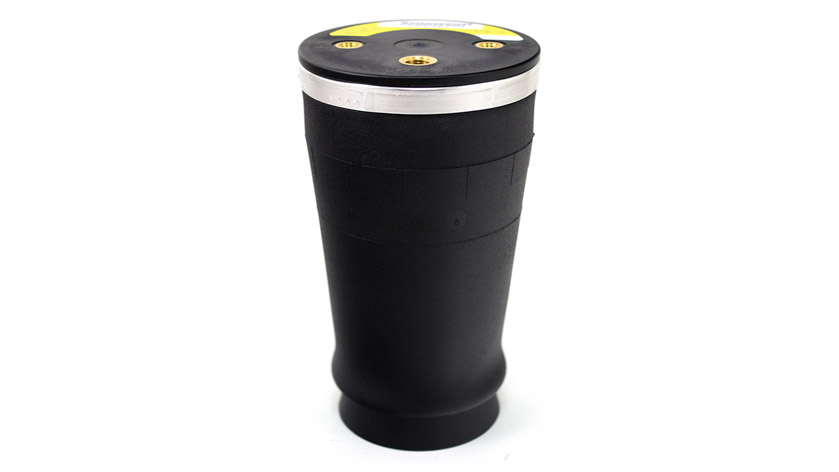

TAPERED SLEEVE 1/4″ PORT (58130)


  • Maximum Extended Height: 9.5″
  • Compressed Height: 4.25″
  • Maximum Diameter: 5.4″
  • Maximum Load at 100 PSI: 1,216 lbs.
  • Design Height: 6.5-8.5″
  • Air Fitting Size: 1/4″
  • Top Fastener: 3/8″ – 24
  • Bottom Fastener: 3/8″ – 16
  • Mounting Hole Center: 2.75″ – Top/Center/Bottom

DOMINATE THE STREETS

Dominator™ series air springs provide the ultimate in air spring performance with more lift, higher pressure, and a softer ride.
